Revit Hatch Patterns - Brick Package

This package contains 23 brick hatch patterns that you can use to create filled regions or surface patterns in Revit.

Think of all the time you’ll save from having to create these hatch patterns yourself!




List of hatch patterns includes:
  • 1/2 Running Bond
  • 1/2 Running Bond - Grout
  • 1/3 Running Bond
  • 1/3 Running Bond - Grout
  • Running Header
  • Soldier Course
  • Soldier Course - Grout
  • Stack Bond - Horizontal
  • Stack Bond - Horizontal - Grout
  • Stack Bond - Vertical
  • Stack Bond - Vertical - Grout
  • Common Bond
  • Flemish Bond
  • Common Flemish Bond
  • Flemish Bond - Double Stretcher
  • Flemish Cross
  • Flemish Cross - Hatch
  • Flemish Diagonal
  • Flemish Diagonal - Hatch
  • English Dutch Cross Bond
  • Garden Wall Bond
  • Garden Wall Cross
  • Garden Wall Cross - Hatch

Included in the package:
  • 23 .PAT Files

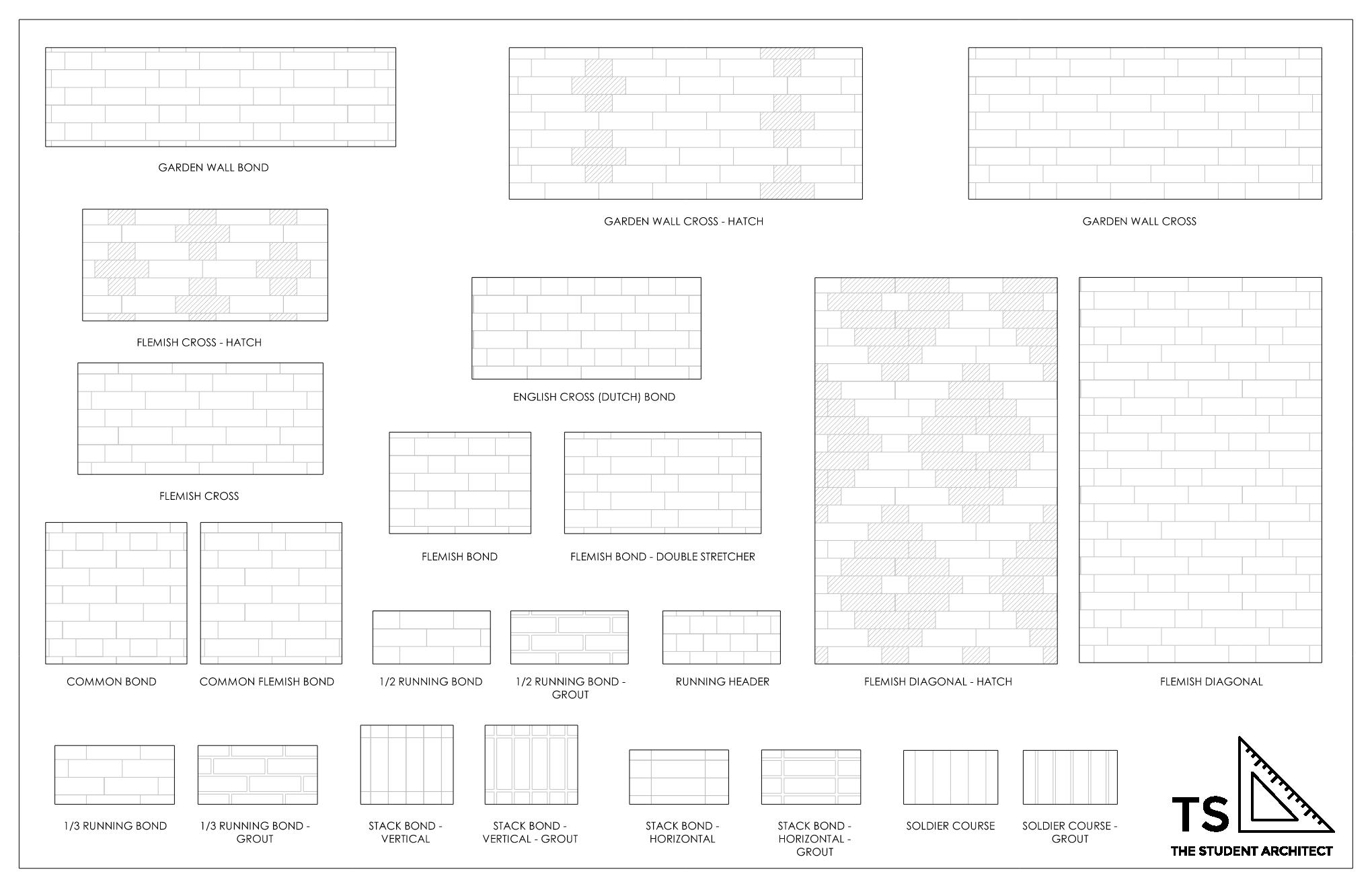

  • PDF showing each hatch pattern and name
  • Bonus resources
These .PAT files are model patterns (not draft patterns). This means lines within the patterns can be selected, dimensioned, shifted, rotated, etc., and will scale with your views.

You can use these hatches with any version of Revit.


Watch the video below to learn what to do after you make a purchase.




Get the
Brick Revit Hatch Patterns Package for $9

Buy Now
